Floor Plan & General Arrangement
Document Ref: SW-RISE-FP-001
~585 sq ft
Total Floor Area
31' 6" × 17' 8"
Overall Dimensions
1 bed / 1 bath
Configuration
120/240V
Electrical Standard
F: Refrigerator Cavity
L: European Laundry
Dimensions: Millimetres unless noted
Bedroom
Open Living
Kitchen
Bathroom
Laundry
Front Porch
© 2026 Stackwell Homes. All rights reserved.
stackwellhomes.com
Page 1 of 3
Stackwell
The Smarter Way to Live
Elevations
Document Ref: SW-RISE-EL-001

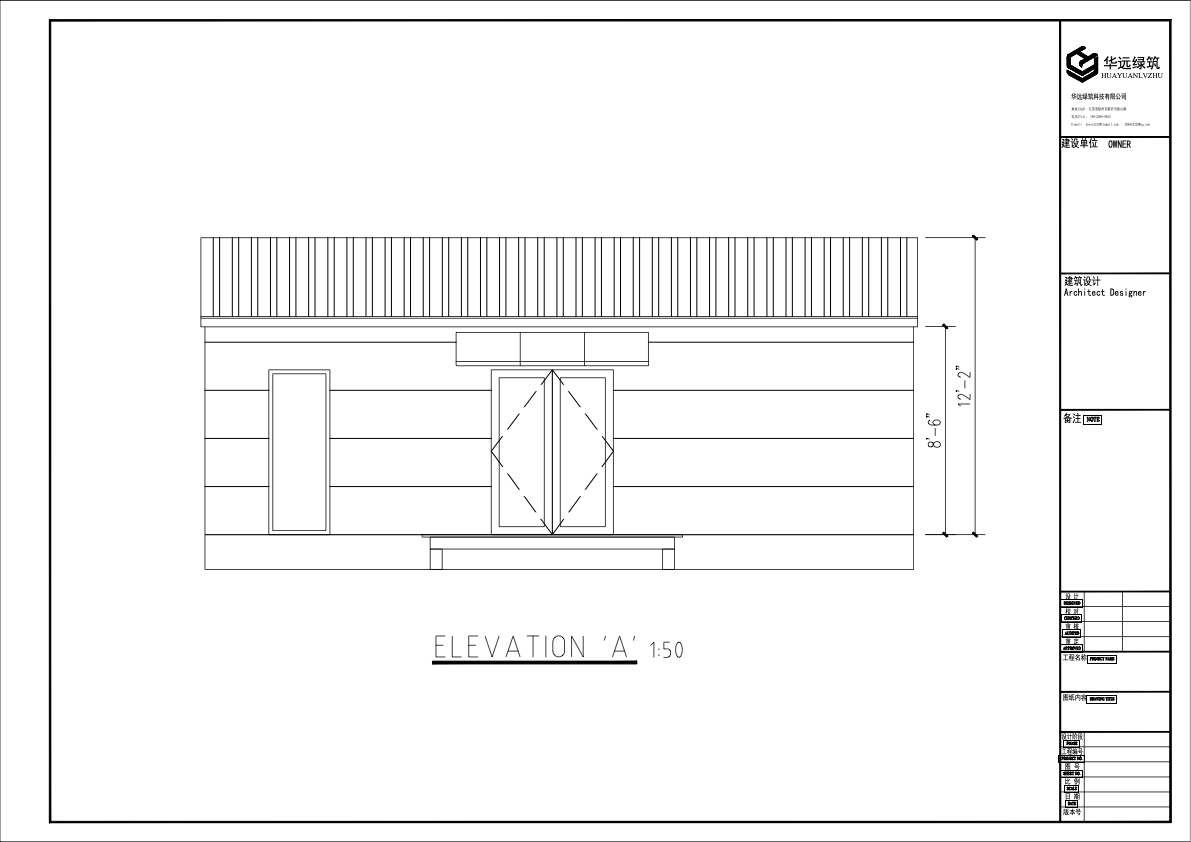

Elevation A — Front

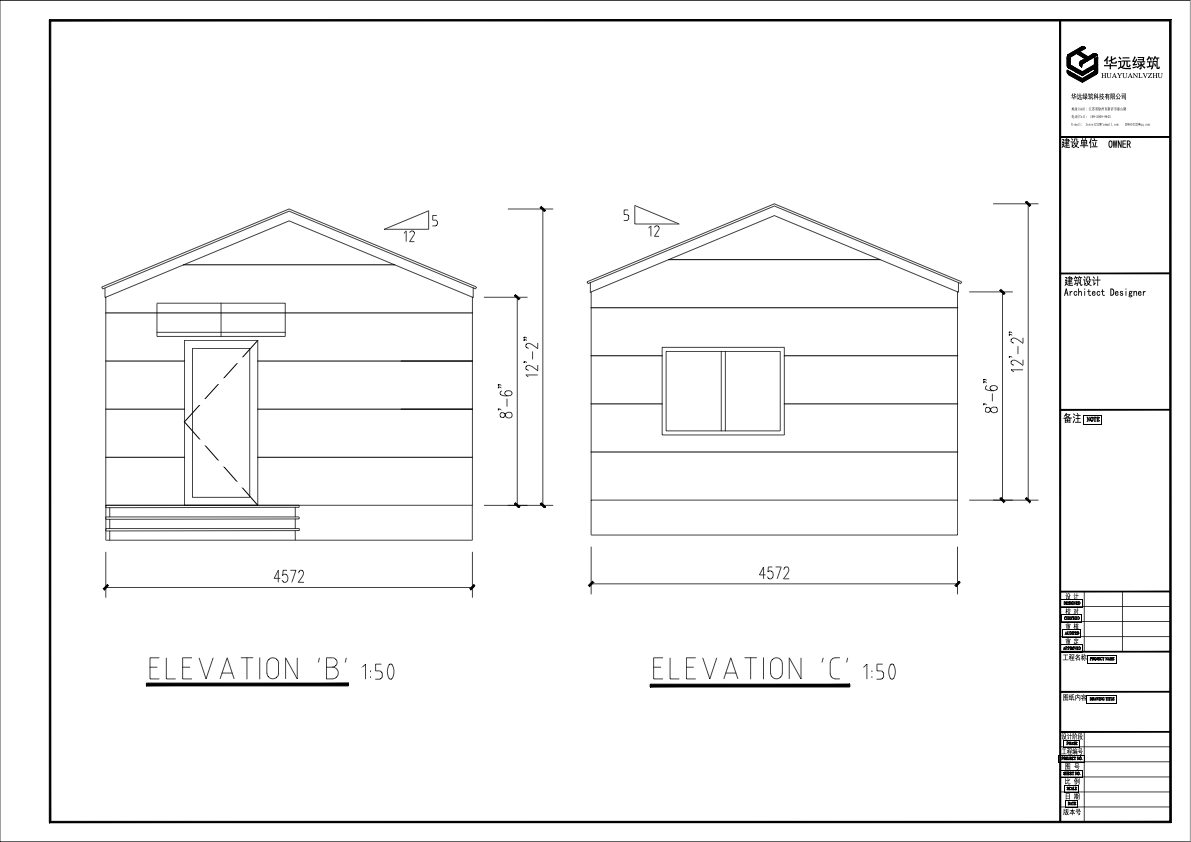

Elevation B & C — Sides

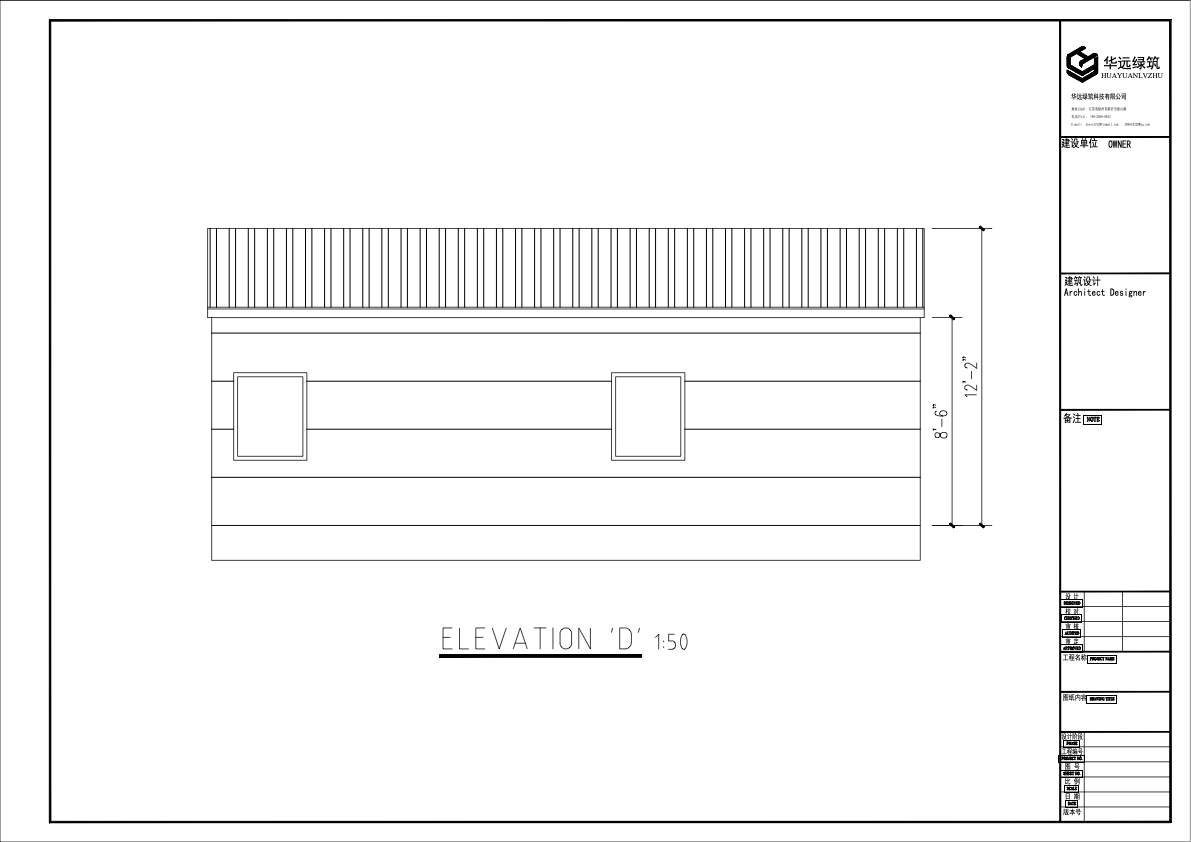

Elevation D — Rear

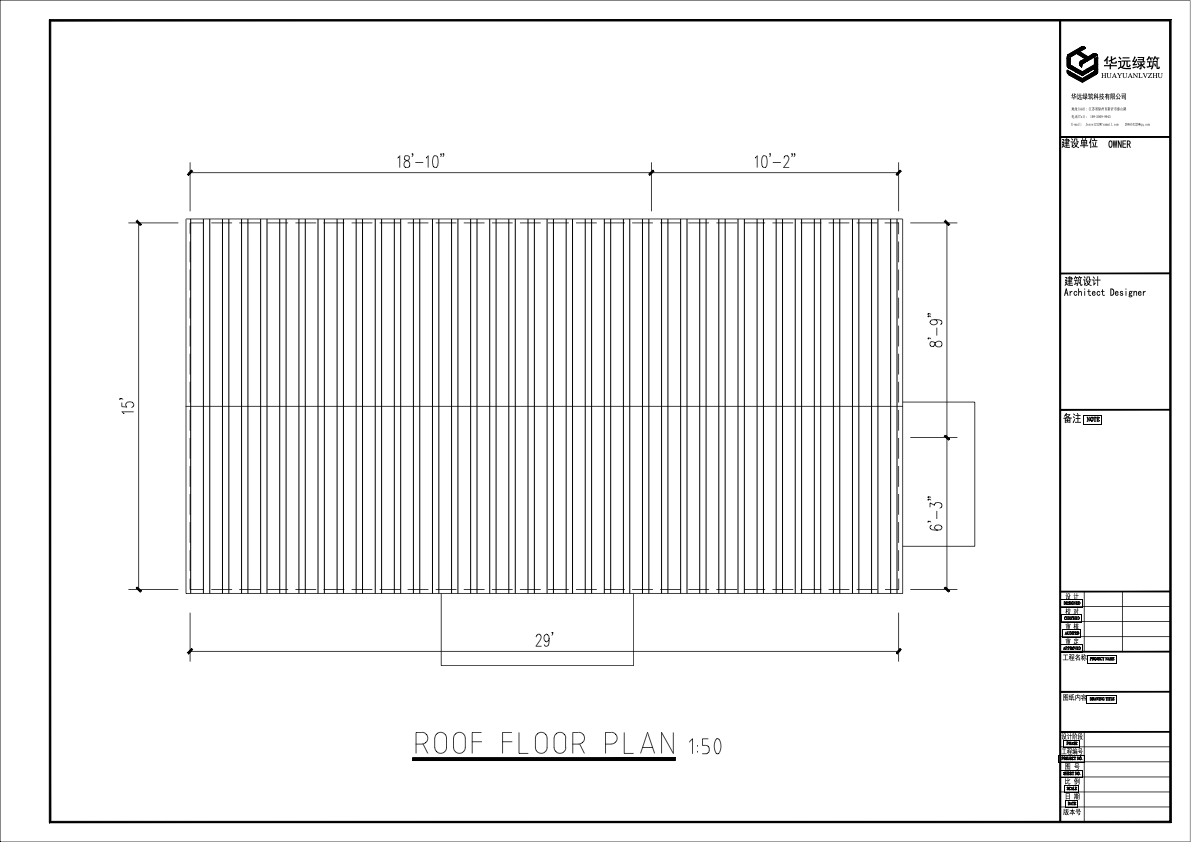

Roof Plan
© 2026 Stackwell Homes. All rights reserved.
stackwellhomes.com
Page 2 of 3
Stackwell
The Smarter Way to Live
Specifications
Document Ref: SW-RISE-SP-001
Technical Specifications
Dimensions
Overall length31' 6" (9,600mm)
Overall width17' 8" (5,404mm)
Floor area~585 sq ft
Living ceiling8' 10"
Bedroom ceiling7' 10"
Bathroom ceiling7' 6"
Ridge height3.74m from FFL
FFL above ground600mm
Roof pitch5°
Structural
Floor live load40 psf
Roof live load20 psf
Ground snow load30 psf (site-specific)
Seismic categoryD (site-specific)
Wind speed rating115 mph (site-specific)
Wall framingLight-gauge steel
Floor constructionSteel joist system
Roof constructionTruss system
Envelope & Services
Wall R-valueR-21
Floor R-valueR-30
Ceiling R-valueR-38
Roof claddingStanding seam metal
Electrical120/240V US
PlumbingUS code — PEX
HVACMini-split heat pump
Hot waterElectric tank (40 gal)
WindowsDouble-glazed aluminium
Included Features
Complete home kit supply — all structural and finishing components
US electrical standard (120/240V) pre-wired
US plumbing code compliant — PEX piping
International shipping to nearest US port
Full assembly documentation, videos, and manuals
Site-specific permit plans
Kitchen with factory-installed cabinetry and countertops
Bathroom with fixtures and finishes
Flooring throughout — luxury vinyl plank
Interior and exterior cladding — fiber cement
Covered front porch
Customer Responsibilities (Not Included)
Site preparation including levelling and earthworks
Concrete foundation per engineering drawings
Licensed builder engagement for assembly
Local permits and inspection fees
Utility connections (water, sewer, electrical)
Delivery from port to site
Specifications are approximate and subject to change. Images and drawings are indicative only and may differ from the final product due to manufacturing tolerances, material availability, or regional variations. All design criteria shown are generic — site-specific engineering may be required. Stackwell Homes is a supply-only business and does not perform on-site construction or installation. © 2026 Stackwell Homes. All rights reserved.
